Hardening Remote Desktop on Windows 11: NLA, encryption level, and the settings that still leave RDP exposed

Remote Desktop Protocol (RDP) is the most attacked remote surface on Windows. Turning it on takes one toggle in Settings. Hardening it takes about a dozen settings spread across three completely separate surfaces. Most of the guidance you will find online stops at "enable Network Level Authentication" and never explains what that actually does, or which of the other settings genuinely change your exposure. This post walks the whole feature area from first principles, names every registry value and event ID involved, and gives you a read-only script that tells you what is really in force on a device.

The problem: one toggle on, a dozen settings undecided

Open Settings > System > Remote Desktop on a Windows 11 Pro, Enterprise or Education device and flip Enable Remote Desktop to On. Microsoft documents that click path, and it works. What it does not tell you is exactly what changed.

Three things changed. A registry value flipped. Four firewall rules turned on. A service moved from stopped to running. That is the whole of it.

Nothing in that toggle decided whether a caller has to authenticate before a session is built for them. Nothing decided whether the server proves its own identity. Nothing decided how long an abandoned session survives, or whether the four firewall rules now allowing inbound TCP 3389 apply on the corporate network only or on the coffee shop Wi-Fi too. Those are separate settings on separate surfaces, and their defaults are not the same thing as a decision.

Here is the awkward part. Windows Home editions cannot host RDP at all, so a lot of teams assume RDP is not their problem. But every Pro, Enterprise and Education device in your fleet ships with the listener configuration already sitting in the registry, ready to be used the instant somebody flips the toggle or an installer flips it for them. The settings that decide how dangerous that is are configured, or not configured, right now.

Why it happens: pre-auth versus post-auth attack surface

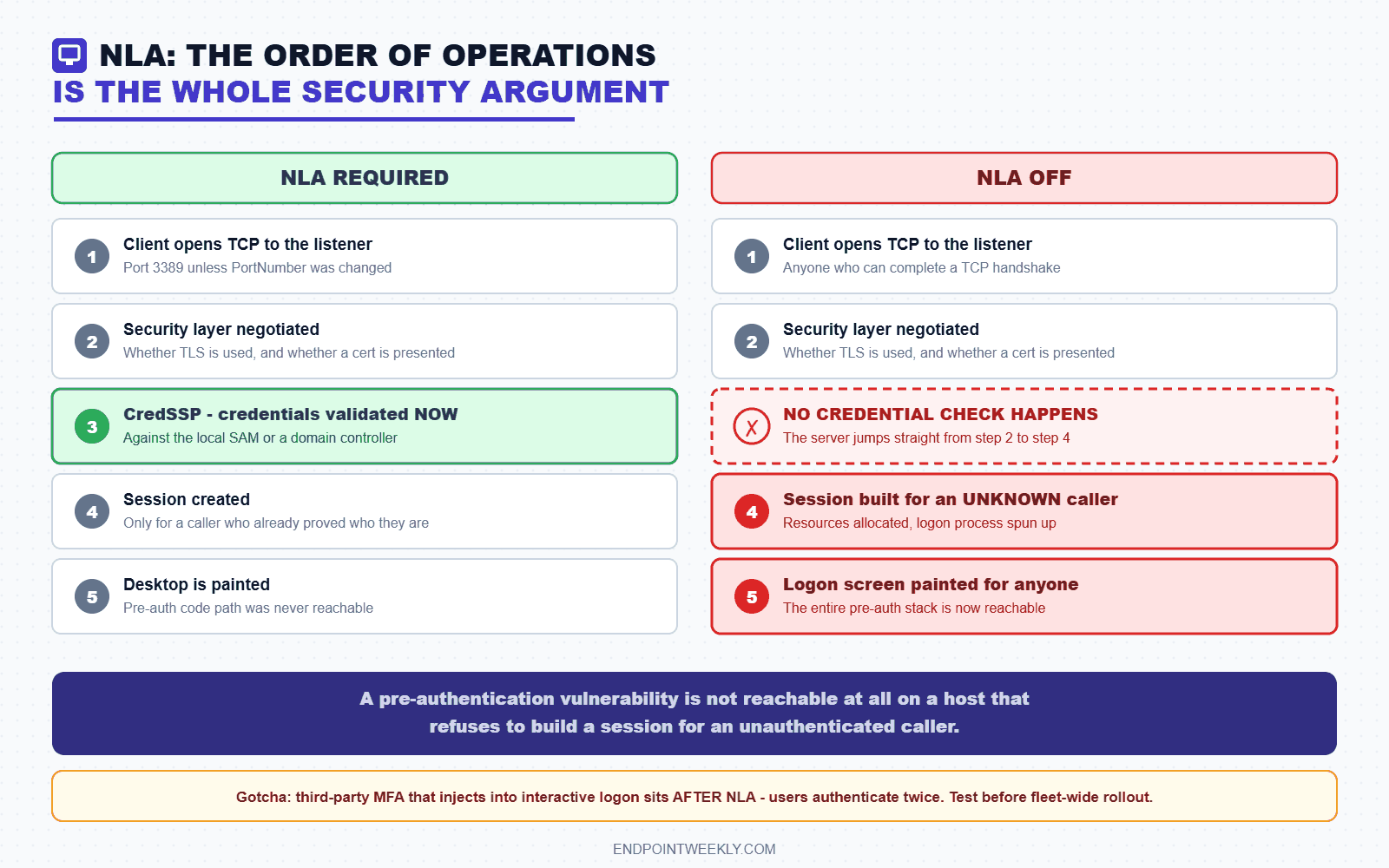

To harden RDP you have to understand the order of operations. Here is the chain, from the moment a client sends a packet to the moment a desktop appears.

1. The client opens a TCP connection to the listener port. That is 3389 unless somebody changed PortNumber.
2. The two sides negotiate a security layer. This is where they agree whether TLS will be used, and whether the server will present a certificate.
3. If NLA is required, the client must complete a CredSSP exchange and hand over credentials that the server validates now, against the local SAM or a domain controller.
4. Only after step 3 succeeds does Remote Desktop Services create a session and run the logon process.
5. The desktop, or the logon UI, is painted.

Now remove step 3. Without NLA, the server jumps straight from step 2 to step 4. It allocates session resources, spins up the logon process, and paints a logon screen for a caller it knows nothing about. That is the pre-authentication code path, and it is reachable by anyone who can complete a TCP handshake.

Microsoft's own description of the benefit is blunt. NLA "completes user authentication before you establish a remote desktop connection and the logon screen appears", it "requires fewer remote computer resources initially", and it "can help provide better security by reducing the risk of denial-of-service attacks". The security value follows directly from that ordering: a vulnerability that lives in the pre-authentication part of the stack is not reachable at all on a host that refuses to build a session for an unauthenticated caller. That is the whole argument for NLA, and it is why it is the first thing to turn on rather than the last.

The price is a client requirement. Microsoft documents that NLA needs a client running at least Remote Desktop Connection 6.0, on an operating system that supports CredSSP. Every currently supported Windows client meets that. Thin clients, appliance-based KVM-over-IP consoles, and some third-party RDP clients may not.

SecurityLayer decides who authenticates whom

NLA answers "did the caller prove who they are". SecurityLayer answers a different question: "did the server prove who it is". They are separate settings and people conflate them constantly.

Microsoft's Unattend reference documents three values, and the shipped TerminalServer.admx on any Windows 11 device confirms the same three:

• 0 (RDP) uses native RDP encryption. Microsoft's own policy text says that with this setting "the RD Session Host server is not authenticated". Anyone who can get in the network path can present themselves as your server and collect credentials.
• 1 (Negotiate) uses TLS if the client supports it, and falls back to native RDP if not. Microsoft documents this as the default value. The fallback is the problem: a deliberately old client forces the downgrade.
• 2 (TLS) requires TLS for server authentication and for encrypting everything in the session. Microsoft's policy text notes that native RDP encryption "as opposed to SSL encryption, is not recommended", which is as close as documentation gets to telling you to pick 2.

MinEncryptionLevel is narrower than it looks

MinEncryptionLevel is the value behind the Set client connection encryption level policy. Microsoft documents four levels: 1 = Low, 2 = Client Compatible, 3 = High, 4 = FIPS Compliant. Low is the one to know about, because Microsoft states plainly that at Low, "data sent from the server to the client is not encrypted".

Two important pieces of nuance that most guides skip.

First, the policy's own description says it "only applies when you are using native RDP encryption" and "doesn't apply to SSL encryption". Once you set SecurityLayer to TLS, TLS supplies the encryption and this value stops deciding anything on that listener. It is still worth setting, because it is your floor if somebody later loosens the security layer.

Second, the ADMX policy only offers three of the four values. The enumeration in TerminalServer.admx contains Low (1), Client Compatible (2) and High (3). There is no FIPS option in that dropdown. Microsoft's guidance is that FIPS compliance is configured through System cryptography: Use FIPS compliant algorithms for encryption, hashing, and signing under Computer Configuration > Windows Settings > Security Settings > Local Policies > Security Options, not through this policy.

Three surfaces, and which one wins

The same three value names exist in two places, and this catches people out constantly.

The local settings live under the listener's own WinStation key. The policy settings live under a Policies key written by Group Policy or Intune. Microsoft's guidance on NLA is explicit that "the Group Policy setting will take precedence over the setting configured in Remote Desktop Session Host Configuration or on the Remote tab". If the Policies value is present, that is the effective value, and the checkbox in the UI greys out.

The third surface is Windows Firewall. A device can have NLA required, TLS enforced and RDP enabled, and still be completely unreachable because every rule in the Remote Desktop group is disabled. Conversely it can have flawless authentication settings and an inbound allow rule scoped to the Public profile, which is how a laptop ends up accepting connection attempts from a hotel network.

How to verify: registry, services, firewall, event log

Verify before you change anything. On a managed fleet, half of these values are already set by a baseline you inherited and forgot about.

The registry reference

The listener's own configuration lives under this key. It has one subkey per listener, and RDP-Tcp is the one that matters on a client:

Whether RDP is on at all is one value on the parent key, not on the listener key:

Microsoft's troubleshooting guide states it exactly that way: "If the value of the fDenyTSConnections key is 0, then RDP is enabled. If the value of the fDenyTSConnections key is 1, then RDP is disabled." Note that the polarity is inverted from what you would guess, because the value is a deny flag.

The policy copies of all of the above live under a different hive. Anything present here was pushed by Group Policy or by Intune, and it beats the WinStation value:

Here is what those keys look like in Registry Editor on a device where a policy has already been applied. Notice the same two value names appearing under both hives, and that the policy hive is the one holding the decision:

Reading all three surfaces from PowerShell

This block reads the listener key, the policy key and the service state in one pass. Run it elevated. It changes nothing.

Services and scheduled tasks

Microsoft's troubleshooting guide names exactly two services that must be running on both ends of an RDP connection: Remote Desktop Services (TermService) and Remote Desktop Services UserMode Port Redirector (UmRdpService). A third, Remote Desktop Configuration (SessionEnv), handles the listener and certificate configuration. All three are Manual start by default on Windows 11, which is why a device with RDP disabled shows them stopped.

There is no scheduled task under \Microsoft\Windows\... that drives Remote Desktop Services. I checked a Windows 11 24H2 device: the only remote-access task in that tree is \Microsoft\Windows\RemoteAssistance\RemoteAssistanceTask, which belongs to Remote Assistance, a different feature with a different attack surface. If you are auditing RDP, the scheduled task surface is genuinely not part of the story, and you should not waste a detection rule on it.

System files and DLLs in the flow

Knowing the binaries matters when you are reading a crash, a Defender detection, or an application control block. These are the ones in the path, verified present on a Windows 11 24H2 device.

One detail worth internalising. TermService does not run in its own process. Its ImagePath is svchost.exe -k NetworkService, and the built-in firewall rule for RDP is scoped to that host process plus the service name. The rule string Microsoft publishes for RemoteDesktop-UserMode-In-TCP includes App=%SystemRoot%\system32\svchost.exe|Svc=termservice|LPort=3389. That is why "block svchost" is never a viable mitigation and why the firewall rule is the right lever.

Log files: there are no text logs, and that is fine

RDP does not write a plain-text log you can grep. The log files are the event channel files, and they live in the standard location:

The %4 in those filenames is an escaped forward slash, which is how Windows encodes the Channel/Operational separator on disk. You can copy those files off a device for offline analysis, and Get-WinEvent -Path will read them without the originating machine.

Event Viewer: the catalog that actually matters

Four channels tell the RDP story, and each answers a different question. The event IDs and message texts below come from the provider manifests that ship in Windows, which you can read yourself with Get-WinEvent -ListProvider.

Here is what a genuine brute force looks like in Event Viewer once you know where to look. This example is illustrative, with the source address replaced by an RFC 5737 documentation address:

Firewall: what actually exposes the listener

Windows ships four inbound rules across two display groups for this. On a Windows 11 24H2 device they are RemoteDesktop-UserMode-In-TCP and RemoteDesktop-UserMode-In-UDP on port 3389, RemoteDesktop-Shadow-In-TCP for session shadowing, and RemoteDesktop-In-TCP-WSS in a separate Remote Desktop (WebSocket) group. All four are scoped to every profile out of the box.

That last detail is the one people miss. A rule with Profile = Any applies on Domain, Private and Public. A laptop that joins hotel Wi-Fi is offering the same listener it offers on your corporate LAN.

The fix: Group Policy and Intune, setting by setting

Everything below is a real click path. Do the Group Policy version first on a test device so you can see the values land in the registry, then reproduce it in Intune for the fleet.

Group Policy: the Security node

1. Press Win+R, type gpedit.msc and press Enter. On a domain-joined device do this in the Group Policy Management Console against a test OU instead, so you are not fighting a local setting later.
2. Navigate the path in the breadcrumb above.
3. Double-click Require user authentication for remote connections by using Network Level Authentication. Set it to Enabled and click OK. This writes UserAuthentication = 1 to the policy hive.
4. Double-click Require use of specific security layer for remote (RDP) connections. Set it to Enabled, then choose SSL from the Security Layer dropdown. Click OK. This writes SecurityLayer = 2.
5. Double-click Set client connection encryption level. Set it to Enabled and choose High Level. Click OK. This writes MinEncryptionLevel = 3 as your floor for any listener not on TLS.
6. Double-click Always prompt for password upon connection and set it to Enabled. This writes fPromptForPassword = 1, so a credential saved in an .rdp file cannot log straight in.
7. Double-click Require secure RPC communication and set it to Enabled. This writes fEncryptRPCTraffic = 1 and hardens the RPC interface used to administer RDS.
8. Open an elevated command prompt and run gpupdate /force.
9. Re-run the first PowerShell block above. The policy hive should now show your values, and the checkbox in Settings > System > Remote Desktop for NLA should be greyed out, which is Windows telling you policy has taken over.

Group Policy: the Session Time Limits node

1. Navigate to the Session Time Limits node in the breadcrumb above.
2. Double-click Set time limit for active but idle Remote Desktop Services sessions. Set Enabled and pick a value from the Idle session limit dropdown, for example 15 minutes. This writes MaxIdleTime = 900000, because the values are milliseconds.
3. Double-click Set time limit for disconnected sessions. Set Enabled and pick, for example, 1 hour. This writes MaxDisconnectionTime = 3600000.
4. Double-click Set time limit for active Remote Desktop Services sessions if you want a hard ceiling regardless of activity. This writes MaxConnectionTime.
5. Double-click End session when time limits are reached and set it to Enabled. This writes fResetBroken = 1. Without it, a session that hits a limit is only disconnected, and it keeps running.
6. Run gpupdate /force and confirm the values in the policy hive.

Intune: Settings catalog

Intune does not expose these as a dedicated Remote Desktop profile. They arrive through the ADMX-backed Administrative Templates that are built into the settings catalog, and Microsoft states that "the Windows settings in Intune correlate to the on-premises group policy path you see in Local Group Policy Editor". So the tree you navigate is identical to the GPO tree above.

1. Sign in to the Microsoft Intune admin center.
2. Go to Devices > Manage devices > Configuration, then select Create > New policy.
3. Set Platform to Windows 10 and later and Profile type to Settings catalog. Select Create.
4. Name the policy something a future colleague will understand, for example Win11 - RDP hardening - NLA and TLS. Add a description. Select Next.
5. Select Add settings to open the settings picker, and expand Administrative Templates.
6. Expand Windows Components > Remote Desktop Services > Remote Desktop Session Host > Security.
7. Tick Require user authentication for remote connections by using Network Level Authentication, Require use of specific security layer for remote (RDP) connections, Set client connection encryption level and Always prompt for password upon connection.
8. Still in the picker, expand Session Time Limits and tick the idle, disconnected and end-session settings you decided on above. Watch for the (User) suffix: Microsoft documents that a setting showing (User) applies to users at sign-in, and one without it applies to the device. That suffix is how you tell the _1 and _2 policy pair apart in the catalog.
9. Close the picker. Each setting now appears in the policy with its own toggle and dropdown. Set the security layer to SSL, the encryption level to High Level, and the time limits to your chosen values.
10. Select Next through scope tags, then assign the policy. Assign it to a small pilot group first.
11. Select Next, review, and select Create.
12. After the next device check-in, confirm the values landed under HKLM\SOFTWARE\Policies\Microsoft\Windows NT\Terminal Services using the PowerShell block above.

The setting most RDP guides forget: account lockout

NLA changes where credential guessing happens, not whether it happens. With NLA required, an attacker who reaches the port can still submit username and password pairs, and each one is validated against the local SAM or a domain controller. That is what RdpCoreTS event 140 records.

What makes each guess expensive is Account Lockout Policy, configured under Computer Configuration > Windows Settings > Security Settings > Account Policies > Account Lockout Policy. If the lockout threshold is Never, guessing is unlimited and free, and every other hardening step on this page only slows the attacker down rather than stopping them.

There is a Windows 11 specific wrinkle worth knowing. Historically the built-in Administrator account, relative identifier 500, could not be locked out at all, which made it the obvious target for RDP password spraying. Microsoft added an Allow Administrator account lockout setting to Account Lockout Policy. Its documentation states that "beginning in the October 11, 2022, or later Windows cumulative updates, a local policy will be available to enable built-in local Administrator account lockouts", and that on new Windows 11 22H2 computers "these settings will be set by default at system setup". Critically, it also states that a computer set up first and updated afterwards "will not be secure by default". So on any device that was imaged before October 2022 and patched since, check this setting rather than assuming it.

Proof it worked: a real posture report

Reading eight registry values, three services, four firewall rules and four event channels by hand, on every device you care about, is not a plan. The companion script does it in one read-only pass and translates the numbers into English.

It is available at github.com/Imran76Awan/Windows-11-Scripts under the rdp-remote-desktop-hardening-nla folder. It is strictly read-only: it never enables or disables Remote Desktop, never touches a firewall rule, never starts or stops a service, and never writes a registry value. It also fails loud, which matters more than it sounds. If the firewall enumeration fails, it aborts with exit code 1 rather than printing "no rules expose RDP", because that would be the single most dangerous sentence a security script could get wrong.

Below is a genuine run on a Windows 11 24H2 Enterprise device, with the hostname replaced. Nothing here is invented.

Read that output as a checklist, not a score. Four GOOD findings and zero HIGH is what a correctly locked-down client looks like. The interesting detail is the encryption level line: it is set locally rather than by policy, which means it is the one value on this device that a local change could quietly move. That is precisely the kind of gap a table of settings never shows you and a posture report does.

The script exits 0 when every read succeeded and 1 when any read failed or the device was not elevated, so you can wrap it in a Proactive Remediation detection or a scheduled fleet sweep and trust the exit code.

References

Microsoft documentation

• Enable Remote Desktop on your PC — the Settings click path, the edition requirements, and Microsoft's own answer to "why allow connections only with Network Level Authentication".
• General Remote Desktop connection troubleshooting — the source for fDenyTSConnections polarity, the WinStations\RDP-Tcp and PortNumber keys, the TermService and UmRdpService requirement, and the qwinsta listener check.
• Win32_TSGeneralSetting class — the documented meanings of the encryption levels 1 to 4, the security layer values, the PolicySource* properties, and the note that SSL is not compatible with a minimum encryption level of 1.
• SecurityLayer (Unattend reference) and UserAuthentication (Unattend reference) — the authoritative 0/1/2 and 0/1 value tables for the registry-side names.
• RemoteDesktopServices Policy CSP and ADMX_TerminalServer Policy CSP — the CSP names, ADMX friendly names, GPO paths and registry value names for every policy used above.
• Configure Network Level Authentication for Remote Desktop Services Connections — the CredSSP and RDC 6.0 client requirements, and the statement that the Group Policy setting takes precedence over the local one.
• 4625(F) An account failed to log on and 4624(S) An account was successfully logged on — the Windows Logon Types table including type 10 RemoteInteractive, and the failure status codes.
• Use ADMX templates on Windows devices in Microsoft Intune — the settings catalog click path, the (User) suffix meaning, and the deprecation of the Templates > Administrative Templates profile type.
• Enable or disable a firewall rule on a guest OS — publishes the full RemoteDesktop-UserMode-In-TCP rule string, including the svchost and termservice scoping and LPort=3389.
• CredSSP encryption oracle remediation — the AllowEncryptionOracle values 0, 1 and 2 and what each one accepts.
• KB5020282: Account lockout available for built-in local administrators — the Allow Administrator account lockout setting, which updates deliver it, and why an upgraded device is not secure by default.

Community deep-dives

Verified on the device, not just in docs

Two sources in this post are the files Windows itself ships, which you can check on any Windows 11 device rather than taking my word for it. The policy-to-registry mappings, the exact enumeration values and the display names came from C:\Windows\PolicyDefinitions\TerminalServer.admx and its en-US\TerminalServer.adml. The event ID message texts came from the provider manifests, readable with Get-WinEvent -ListProvider 'Microsoft-Windows-TerminalServices-LocalSessionManager' and the equivalent for RemoteConnectionManager and RdpCoreTS. If a number in this post disagrees with what you see on your build, trust your build and tell me.
