SetupDiag already named your upgrade failure: reading the report Windows Setup left on the device

A feature update fails. You get a rollback, a user with a wasted morning, and a five-digit hex code that means nothing on its own. So you do the normal thing: you re-queue the update, you tell the user to undock, and you run Disk Cleanup to free some space "in case that was it".

Meanwhile, on that exact device, Windows has already written down the root cause. In plain English. With a rule name.

Microsoft ships a diagnostic tool called SetupDiag. It reads the Windows Setup logs, matches what it finds against a published set of named failure rules, and reports which one hit. That much is reasonably well known. What almost nobody acts on is the part that makes it genuinely free: Windows Setup runs SetupDiag for you, automatically, when an upgrade fails. The verdict is already on the disk and already in the registry before you open a ticket.

I went looking on my own machine - a Windows 11 25H2 corporate laptop, build 26200.9168 - expecting to find nothing. I found a complete failure record from 14 May 2025. Fifteen months old. Never read, never cleared, sitting in the registry with the matched rule name, the error pair, the target build and the elapsed time. Nobody on this device has ever looked at it.

That is the whole point of this post. Before you touch a driver, a service or a folder, read what the analyser already told you.

The problem: the verdict is already on the device

SetupDiag is a diagnostic tool whose whole job is to answer the question you are about to spend two hours on. Microsoft's description is unambiguous: it "works by examining Windows Setup log files" and "attempts to parse these log files to determine the root cause of a failure to update or upgrade the computer to Windows".

It does this by rule matching. It walks a set of rules held in an XML file, one at a time, and reports which rule the log evidence matches. Each rule has a name, a GUID and a documented description. Microsoft's published rules table currently lists 64 named rules, from BitLockerHardblock through DuplicateUserProfileFailure to the generic FindRollbackFailure.

That matters more than it first appears. A raw error code tells you a number. A matched rule name tells you a class of cause that Microsoft has already written a paragraph about. UnknownDriverMigrationFailure and DuplicateUserProfileFailure both surface as generic rollbacks in your dashboard; the remediation for one is removing a driver package, the remediation for the other is deleting an unused local account. The rule name is the difference.

Microsoft's own upgrade resolution-procedures page pushes you at it directly: "You should also try running the free SetupDiag tool provided by Microsoft, which can automatically find the reason for an upgrade failure."

And on modern Windows it has already run

Here is the bit that turns SetupDiag from "a tool I should download" into "a report I should read". Microsoft documents that SetupDiag is included with Windows Setup in all currently supported versions of Windows, and that during the upgrade process Setup extracts all its source files - SetupDiag.exe included - to %SystemDrive%\$Windows.~bt\Sources. Then: "If there's an issue with the upgrade, SetupDiag automatically runs to determine the cause of the failure."

So the first diagnostic command on a failed-upgrade device is not a command at all. It is a read.

Read that record for a moment and notice how much diagnosis it hands over for free. The rule is FindAbruptDownlevelFailure, so the failure happened in the downlevel phase - inside the old OS, before any reboot. UpgradeElapsedTime is 27 seconds. Every rollback timestamp is 01/01/0001 00:00:00, the .NET zero date, which means no rollback ever ran.

Twenty-seven seconds, downlevel only, no rollback. Whatever went wrong here, nothing was committed and nothing was reverted. This was never a driver problem. It could not have been - Setup never got as far as touching drivers. Anyone who "fixed" this by updating a graphics driver and retrying would have been right by accident.

Nothing ever clears the record

There is no expiry on this key. Setup writes it on failure and it stays until something explicitly overwrites it - which means the next Setup failure, not the next successful update. That cuts both ways.

The good news is that the evidence survives. On my device the registry record outlived the very logs it was generated from, and it survived a 24H2-to-25H2 release change, a servicing stack update, and eighteen months of monthly cumulative updates.

The bad news is that a stale record will happily send you chasing a ghost. If you read ProfileName and act on it without reading DateTime, you will diagnose someone else's problem from last year. On this device that gap is fifteen months wide. DateTime is not a nice-to-have field; it is the field that decides whether the rest of the record is evidence or noise.

Why it happens: Setup runs the analyser, then buries it

The mechanism is simple and entirely documented. When Setup detects a failure it invokes the copy of SetupDiag.exe it already extracted, with four fixed parameters:

Every one of those four choices has a consequence you should know about.

/ZipLogs:False means Setup does not bundle the logs it just analysed. The analysis is preserved; the raw evidence is not. If you later want to re-run a newer SetupDiag against the same logs, you have to have kept them yourself.

/Format:xml means the on-disk artefact is XML, not the friendly text log you get from a manual run. Do not go looking for SetupDiagResults.log after an automatic run - it will not be there.

/Output: and /RegPath: pin the two destinations. And that /RegPath value is the single most useful piece of trivia in this whole article, because it is not where a manual run writes.

The two registry paths, and why one of them evaporates

Microsoft flags this explicitly: "When Windows Setup runs SetupDiag automatically, the registry path isn't the same as the default registry path when SetupDiag is run manually." Automatic runs go to HKLM\SYSTEM\Setup\SetupDiag\Results. Manual runs, with no /RegPath specified, go to HKLM\SYSTEM\Setup\MoSetup\Volatile\SetupDiag.

Look hard at the word Volatile in that second path. That is not decoration. A volatile registry key exists only in memory and is discarded at shutdown. So if you run SetupDiag manually, do not pass /RegPath, and then reboot the machine before reading the result, the registry copy is gone. You still have the output file, but the registry copy you might have planned to collect remotely no longer exists.

On my device that key is absent, which is exactly right: nobody has ever run SetupDiag manually here, and even if they had, the machine has rebooted many times since.

That comparison is worth stating plainly, because it inverts the advice you would expect. On this device the registry record is richer than the file. The XML holds six elements and no system information. The registry holds fourteen values, including HostOSVersion, TargetOSVersion with its build lab string, and all six timing fields.

So if you were planning to collect SetupDiagResults.xml across the fleet and skip the registry, you would be collecting the smaller half of the evidence. Collect the registry key.

The tool deletes itself, and takes the evidence with it

Now the trap. Microsoft states it in one sentence and most people skim past it: "If the upgrade process proceeds normally, the Sources directory including SetupDiag.exe is moved under %SystemDrive%\Windows.Old for cleanup. If the Windows.old directory is deleted later, SetupDiag.exe is also removed."

So the tool is not a permanent part of Windows. It rides along inside the setup payload and it is disposed of with that payload. SetupDiag.exe has never been in System32 and is not there now - I checked on this device and it is absent, exactly as the documentation implies.

Add the two facts Microsoft publishes about Windows.old and the picture gets worse. Disk Cleanup, under "clean up system files", offers to remove the previous Windows installation. And even if nobody clicks it: "Ten days after you upgrade to Windows, your previous version of Windows is automatically deleted from your PC." The warning attached to it is blunt - "If you delete your previous version of Windows, this can't be undone."

You therefore have a ten-day evidence window by default, and a one-click way to close it early.

This is the cleanest possible illustration of the trap. The logs SetupDiag parsed are still sitting in $WINDOWS.~BT\Sources\Panther fifteen months later, perfectly readable. The binary that read them is nowhere on the machine. If I wanted to re-analyse those logs with a newer rule set today, I would have to download the tool again first.

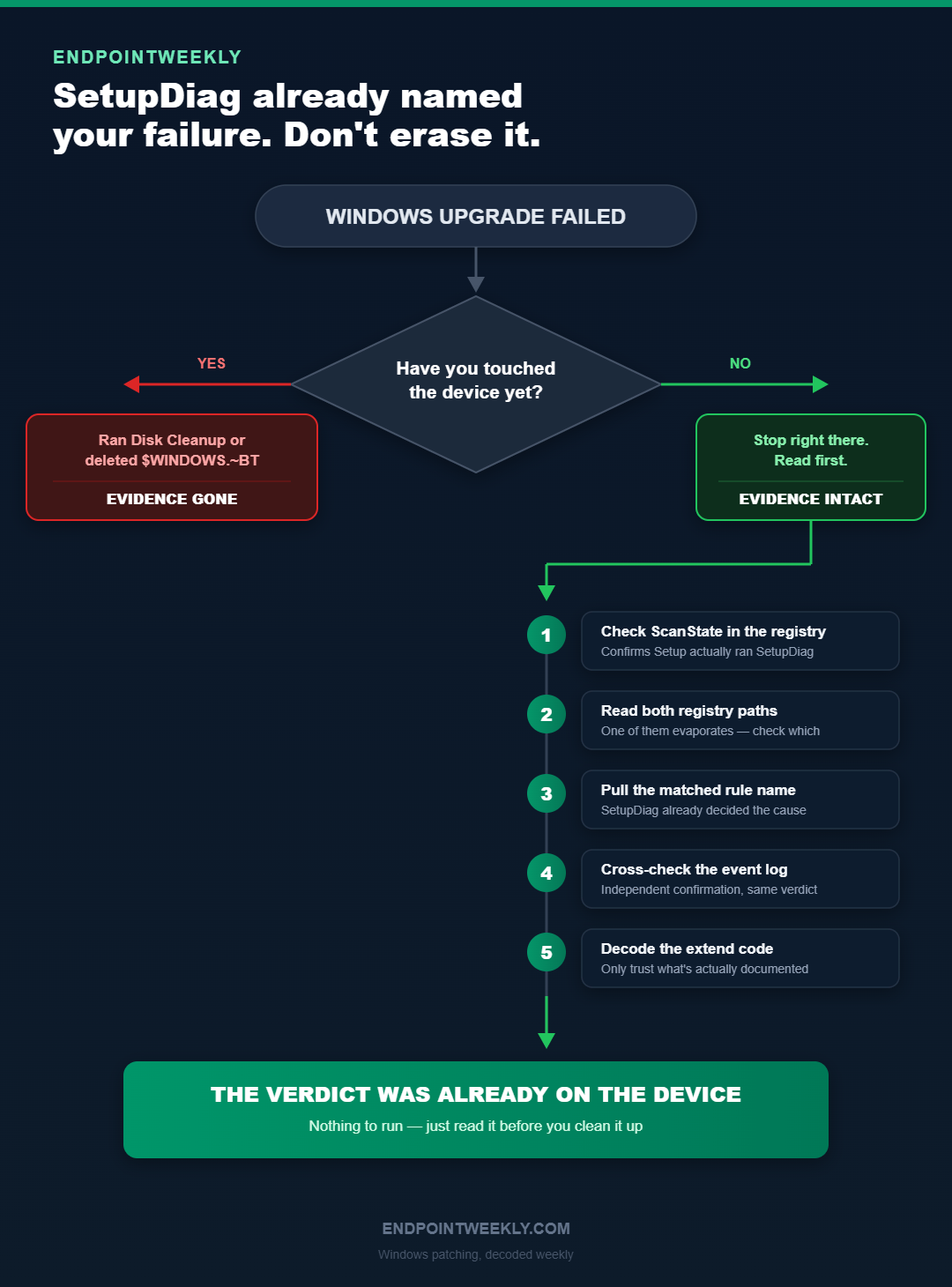

How to verify: a five-step read that costs nothing

Here is the order to work in. Every step before step 5 is read-only and takes seconds. Do not skip ahead - the whole value of this sequence is that it stops you from destroying evidence in step 5 that you needed in step 1.

The registry reference

Every value below lives under one key. On an automatically-generated record this key held exactly 14 values on my device.

The event log reference

One channel, one event ID. This is the Application log, source Windows Error Reporting.

The ten parameters are worth memorising, because two of them are the whole reason to open the event and the rest tell you the shape of the attempt.

P2 and P4 together are a fast triage pair. P2=5 means the event came from the rollback path, so the device got far enough to need reverting. P4=2 means cancel rather than failure - a very different conversation with the user.

Step 3 and step 4, on a real device

My device is a good demonstration of the negative result, and of why the negative result is informative rather than frustrating.

Two conclusions from one absent event. First, the absence is explained, not mysterious - and an explained absence is a finished diagnostic step. Second, the record that does exist in the registry is from a completely different event in May 2025, which is why step 1's instruction to read DateTime first is not pedantry.

The fix: running SetupDiag yourself, online and offline

Everything so far has been reading. Now the tool itself - for when the automatic record is missing, stale, matched no rule, or was written by an older version than the one currently shipping.

Requirements, and one that trips people up

Three documented requirements. The destination version of Windows must be a currently supported version. .NET Framework 4.7.2 or newer must be installed. And SetupDiag.exe must be run from an elevated command prompt "for it to work properly" - Microsoft repeats that warning three separate times on the page, which tells you how often it is the actual problem.

The .NET requirement is the one worth checking before you blame the tool. Microsoft publishes the exact query, and on my device it passes comfortably:

Microsoft's guidance on which build to run is unusually direct: "When SetupDiag is run manually, Microsoft recommends running the latest version of SetupDiag." Because the rules live in an XML file that ships with the binary, an old copy of the tool is an old copy of the rule set. Do not keep a 2019 SetupDiag.exe in your toolkit share and expect it to recognise a 2026 failure mode.

The parameters

One deprecation to know: /Mode is gone. It used to pair with /LogsPath to select offline analysis. Now specifying /LogsPath is sufficient and /Mode is unnecessary. If you inherited a script that passes it, that script predates the current tool.

Which folders to copy for an offline run

This is the part to get right on the failing device, because it is the part you cannot redo later. Microsoft names four candidate folders, and says which one matters depends on when the upgrade failed:

• \$Windows.~bt\sources\panther - the downlevel phase, and the starting point for any rollback investigation
• \$Windows.~bt\Sources\Rollback - the rollback itself, plus the supplemental artefacts: setupmem.dmp, setupapi.dev.log and the captured .evtx files
• \Windows\Panther - post-upgrade, after OOBE
• \Windows\Panther\NewOS

Copy the parent folder and all subfolders and let the tool recurse. Do not hand-pick individual files - the rule set correlates across logs, and DebugSetupMemoryDump, DebugSetupCrash and DebugMemoryDump are offline-only rules that need the dump present to fire at all.

Two things about that sample output are worth internalising. It walks every rule and prints "No match" for each miss, so a long run is normal - Microsoft notes under known issues that "some rules can take a long time to process if the log files involved are large". And it counts matches. When there is more than one, Microsoft's rule is explicit: "When SetupDiag indicates that there were multiple failures, the last failure in the log file is typically the fatal error, not the first one."

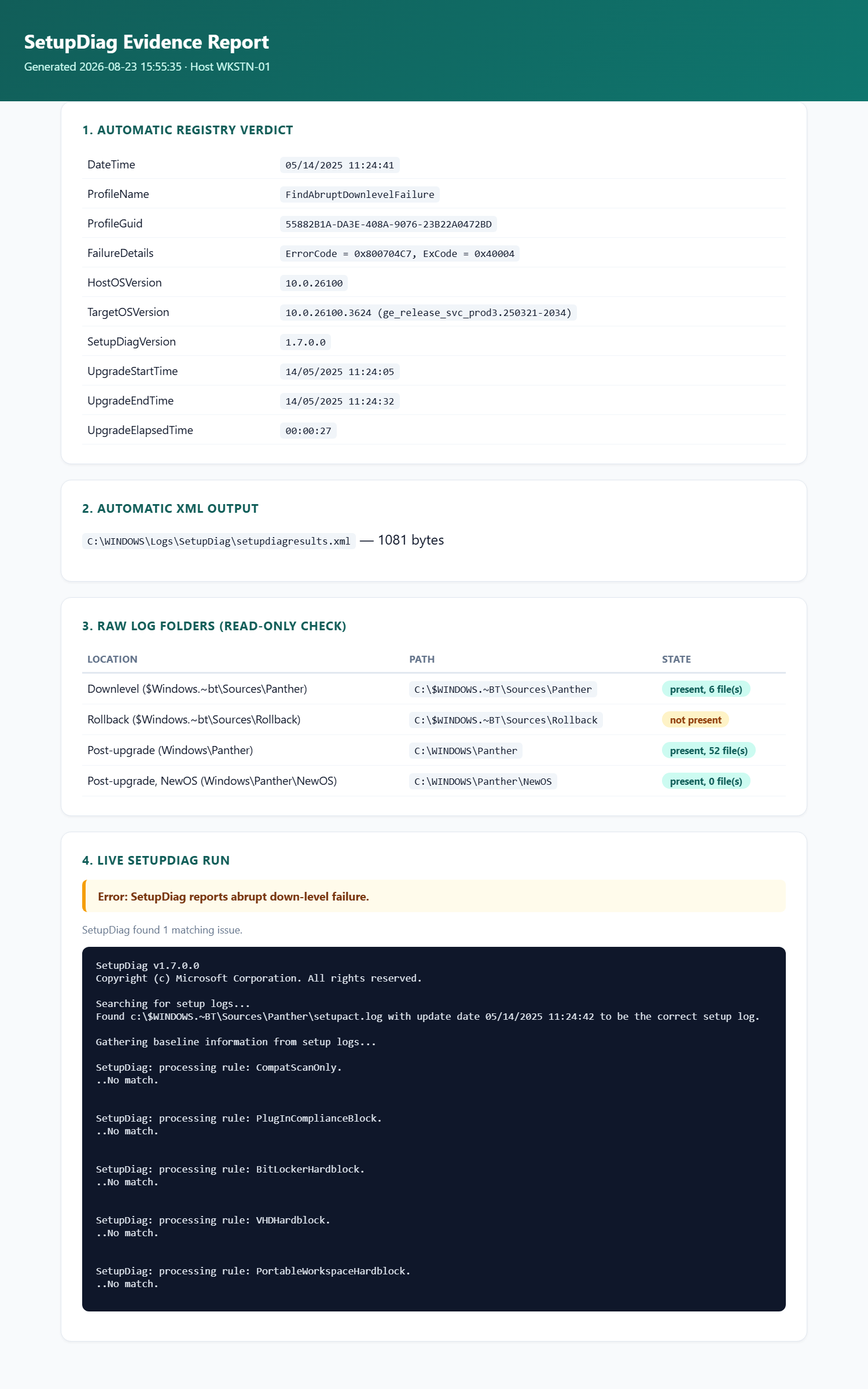

Every registry value, log-folder check and the live SetupDiag re-run in this post, collected by one script and rendered as one report — not four separate manual steps.

What the file names on disk actually mean

The artefacts SetupDiag reads and writes are not interchangeable, and picking the wrong one wastes real time. Everything in this table is present on my device or documented by Microsoft.

Proof it worked: decoding a real 15-month-old record

Everything above is procedure. This section is the payoff: an unbroken chain of custody from a real log line on a real device, through SetupDiag's analysis, to a defensible verdict - all of it recovered read-only, fifteen months after the fact, on a machine nobody had ever investigated.

Start with the raw evidence. The setuperr.log that SetupDiag parsed is still on disk. It is 2,666 bytes and 21 lines, and it is a single unwinding call stack:

Now the chain. Six links, each one verifiable against the previous:

Four separate artefacts - the registry key, the XML, two Panther logs and a Mosetup log - agree to the second. That is what a solid diagnosis looks like, and it took a read-only registry query to find the thread to pull.

Decoding the codes, and refusing to decode one

0x800704C7 is an HRESULT wrapping a Win32 error: the low word 0x4C7 is 1223 decimal, which Microsoft documents as ERROR_CANCELLED - "The operation was canceled by the user."

0x8007139F wraps 0x139F, 5023 decimal: ERROR_INVALID_STATE - "The group or resource is not in the correct state to perform the requested operation." Which is exactly what you would expect a results-fetch call to return after the operation it was asking about had already been cancelled. It is a consequence, not a cause.

And 0xC1800104 and 0xC180010A? I am not going to tell you what those mean, because Microsoft does not. The published modern-setup error table runs from 0xC1900100 upward; the only 0xC180xxxx code documented anywhere on that page is 0xC1800118, an unrelated WSUS decryption-key problem. These two are not in the list.

That restraint matters. It is very tempting to pattern-match 0xC180010A against 0xC190010a (MOSETUP_E_UNKNOWN_CMD_LINE) because they look similar. Different facility, different meaning, and a confident guess here would send a colleague down a completely fabricated path. The two codes appear on CDlpTask::Cancel lines fifteen seconds after the real error, in the cancellation cleanup. Note them, do not build on them.

The extend code that does not fit - and what to trust instead

One honest loose end. FailureDetails gives ExCode = 0x40004. Microsoft's documented convention for extend codes is that the first digit is the setup phase, which would put this in phase 4. But the matched rule is FindAbruptDownlevelFailure, and the log line that triggered it is CSetupManager::ExecuteDownlevelMode. Downlevel is phase 1.

Those two readings cannot both be right, and I am not going to invent a reconciliation. What I will do is say which one I trust. The rule name and the log line are direct evidence from the artefact; the phase-digit convention is a documented convention for 0xC1900101 pairs, and this is not one - the result code here is 0x800704C7. When a decoding convention disagrees with a matched rule and a verbatim log line, believe the rule and the line. This is the same discipline as refusing to guess at the 0xC180xxxx codes: the value of a diagnostic is destroyed the moment you start filling gaps with plausible inventions.

The verdict

Put it together. On 14 May 2025 this device started a Windows Setup pass from build 26100 toward 10.0.26100.3624. Twelve seconds in, during the Dynamic Update action of the downlevel phase, the operation was cancelled. Setup unwound and exited at 27 seconds. No rollback ran, because there was nothing to roll back - Setup never reached a reboot, never touched a driver, never migrated a profile.

Nothing on this machine was broken. Nothing needed fixing. The correct action was to retry the update, and indeed the device went on to reach 25H2 without incident.

Now compare that against the reflex. Faced with a failed feature update and a hex code, the standard sequence is: reset SoftwareDistribution, run SFC, run DISM /RestoreHealth, run Disk Cleanup, retry. That sequence would have "worked", in the sense that the retry succeeded. It would also have consumed an hour, touched four subsystems that were never implicated, destroyed the Panther logs and the SetupDiag record, and taught the engineer precisely nothing - leaving them equally blind the next time.

The registry read took under a second and produced a defensible answer. That is the entire argument of this series in one worked example: the diagnosis is cheaper than the cargo-cult fix, and it is the only one of the two that leaves you smarter.

That last block is the reason to prefer the rule name over your own log reading. A 9 KB pile of Error lines on a successful install is normal. Grepping for the word "Error" and counting hits produces a number that correlates with nothing. SetupDiag does not count errors - it matches a pattern against a named rule, and reports the rule. That is a qualitatively better answer, it is free, and on a modern device it has usually already been produced.

Check it first.
